LADP-6 Zeeman Effect Apparatus with Electromagnet

Short Description:

Free with software system with lowest price, which is the most popular model of zeeman effect choice.
This experimental setup is used to study the Zeeman effect of the spectral line of mercury lamp with a wavelength of 546.1nm. Students can use this experimental setup to understand the concepts of magnetic moment and angular momentum in atomic spectra, as well as the selection rules and corresponding polarization states during energy level transitions. They can also measure the wavelength difference of the T component using an FP standard, calculate the charge to mass ratio, and deepen their understanding of the principles and connotations of the Zeeman effect. The easy switching between manual measurement mode and CCD measurement mode allows students to observe phenomena and cultivate their hands-on abilities.

Send email to us

Product Detail

Product Tags

Experiments

1. Generating strong magnetic fields

2. Adjustment method of F-P etalon

3. Typical methods for observing Zeeman effect

4. Application of CCD in Zeeman Effect Measurement by Observing the Splitting of Zeeman Effect Spectral Lines and Their Polarization States

5. Calculate the charge to mass ratio e/m based on the Zeeman splitting distance

Accessories and specification parameters 1. Tesla meter:
Range: 0-1999mT; Resolution: ImT.
2. Pen shaped mercury lamp:
Diameter: 7mm, starting voltage: 1700V, electromagnet;
The maximum power supply voltage is 50V, the maximum non-magnetic field is 1700mT, and the magnetic field is continuously adjustable.
4. Interference filter:
Center wavelength: 546.1nm;. Half bandwidth: 8nm; aperture: 19mm less.
5. Fabry Perot etalon (F-P etalon)
Aperture: ① 40mm; spacer block: 2mm; bandwidth:>100nm; reflectivity: 95%;
6. Detector:
CMOS camera, resolution 1280X1024, analog-to-digital conversion 10 bit, USB interface for power supply and communication, programmable control of image size, gain, exposure time, trigger, etc.
7. Camera lens:
Imported Computar industrial lens from Japan, focal length 50mm, numerical aperture 1.8, edge processing rate>100 lines/mm, C-port.
8. Optical components:
Optical lens: Material: BK7; Focal length deviation: ± 2%; Diameter deviation:+0.0/-0.1mm; Effective aperture:>80%;
Polarizer: effective aperture>50mm, adjustable 360 ° rotation, minimum division value of 1 °.
9. Software functions:

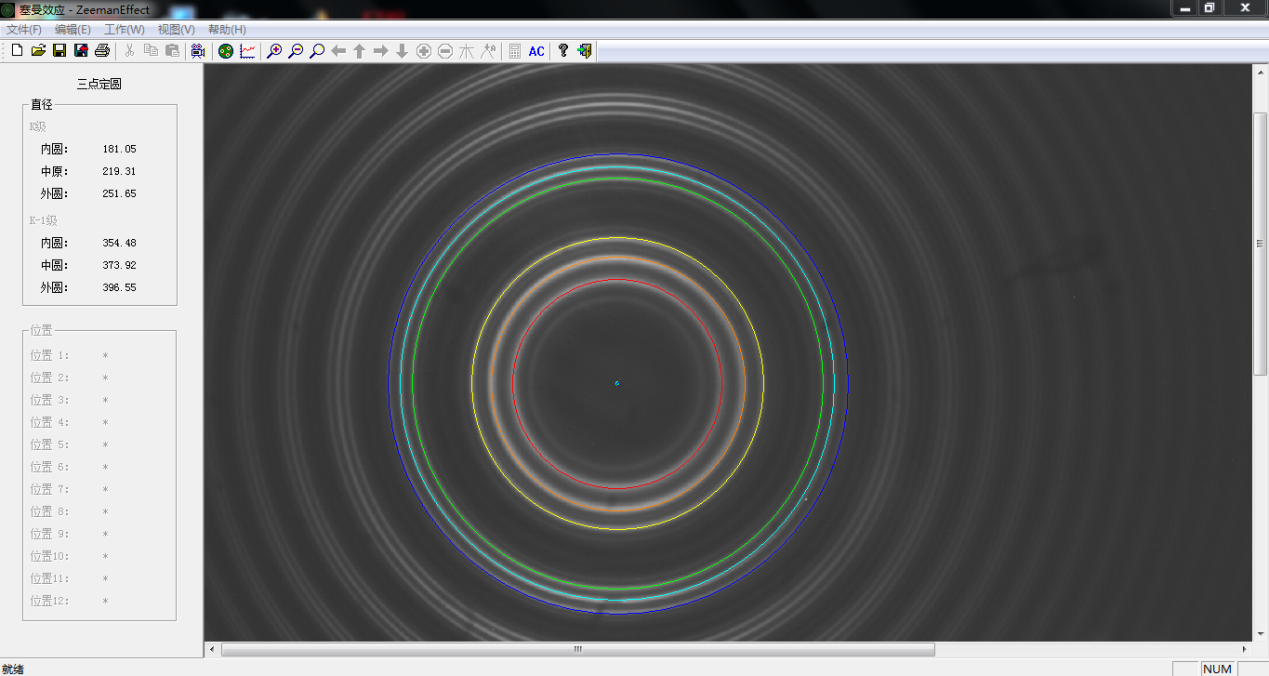

Real time display, image acquisition, adjustable exposure time, gain, etc.
Three point circle setting, measuring diameter, the shape can be moved up, down, left, and right in a small way, and can be enlarged or reduced.
Multi channel analysis, measuring the energy distribution at the center of the circle to determine the diameter size.
10. Other components
Guide rail, slide seat, adjustment frame:
(1) Material: High strength hard aluminum alloy, high strength, heat resistance, low internal stress;
(2) Surface matte treatment, low reflection;
(3) High stability knob with high adjustment accuracy.
